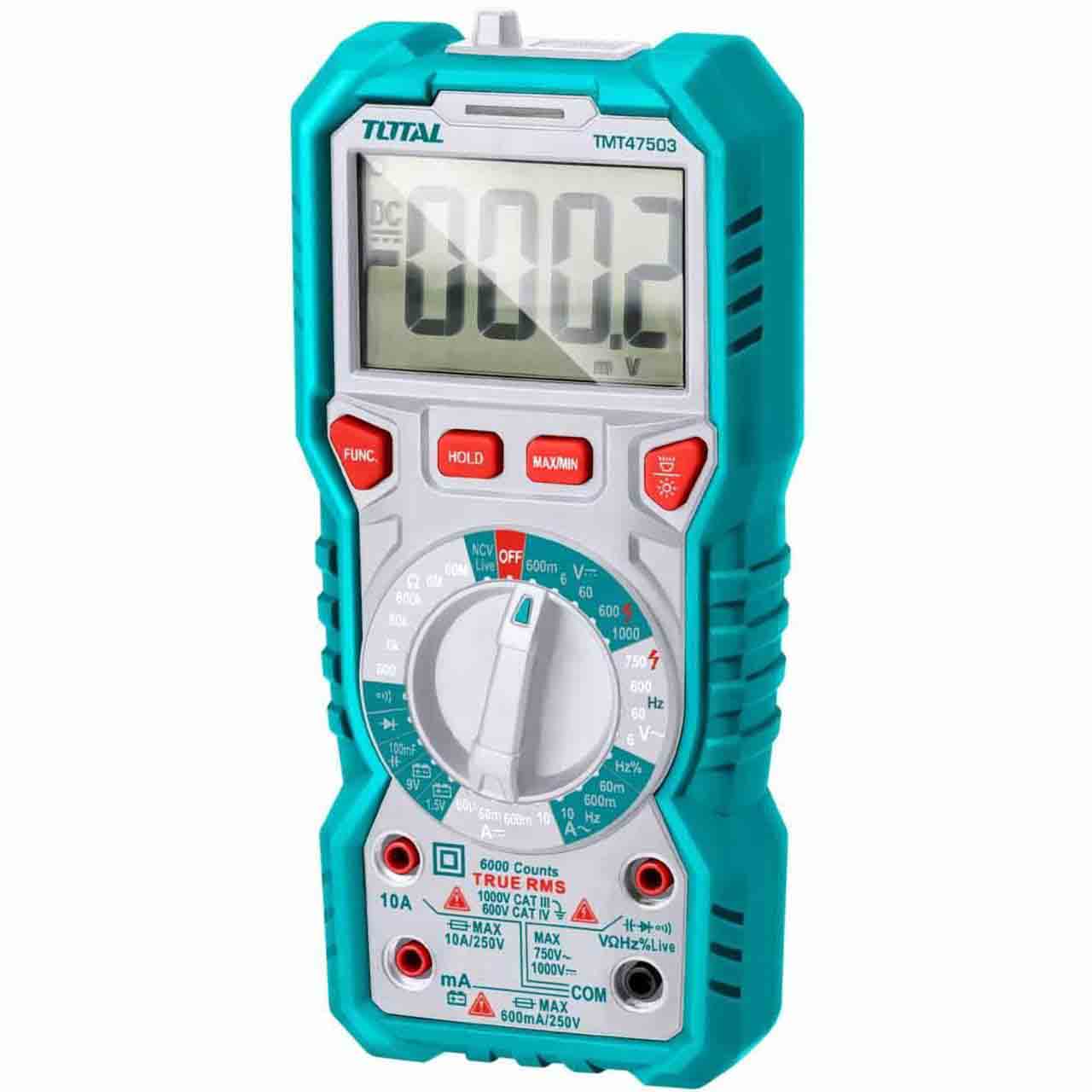

Digital Multimeter 6000 Counts

QR 155

Out of stock

TMT47503

6000 digits RMS Digital Multimeter.

• DC voltage: 600mV / 6V / 60V / 600V / 1000V ± (0.5% +3).
• AC voltage: 6V / 60V ± (0.8% + 3) 600V / 750V ± (1.0% + 10). DC current: 60μA / 60mA / 600mA ± (0.8% + 3) 10A ± (1.2% +3).
• AC current: 60mA / 600mA ± (1.0% + 3) 10A ± (1.5% +3).
• Resistance: 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ ± (0.8% +3). 60MΩ ± (1.0% + 30).
• Capacitance: 10nf ± (4.0% + 30) 100nf / 1000nf / 10μF / 100μF / 1000μF ± (4.0% + 3) 10mf / 100mf ± (5.0% + 3).
• Frequency: 10Hz / 100Hz / 1000Hz / 10KHz / 100KHz / 1000KHz / 10MHz ± (1.0% + 3).
• Duty cycle: 1% ~ 95% ± (2.0% +3).

Data sheet
Where to use it? Automotive, Household / Workshop, General Manufacturing, Construction
Warning Read all safety warnings and follow all instructions.
Storage If you have data storage
Auto off:Yes
Quantity x Packaging 1
CapacityCapacitance: 10nf ± (4.0% + 30) 100nf / 1000nf / 10μF / 100μF / 1000μF ± (4.0% + 3) 10mf / 100mf ± (5.0% + 3).
Capacity (F)Non-contact Voltage Detection.
featuresIndustrial, Diode Test.
CertificationsEC
Work cycleDuty cycle: 1% ~ 95% ± (2.0% +3).
Product code:TMT47503
Colour Turquoise
DC current (A) 60μA / 6mA / 60mA / 600mA ± (0.8% + 3), 10A ± (1.2% + 3)
Frequency (Hz) 10Hz / 100Hz / 1000Hz / 10KHz / 100KHz / 1000KHz / 10MHz ± (1.0% + 3).
Calibrator Group Digital
Low battery indication Yes
LED indicator:Yes
LCD backlight:Yes
MaterialPlastic – Metal
screen LCD showing 6000 digits
Weight (Kg):0.614 Kg
Presentation:Color Box

Resistance;600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ ± (0.8% + 3), 60MΩ ± (1.0% + 3)
Sold for Unit
Type Voltmeter / Multimeter
Applications Building
AC voltage (V) 6V / 60V / 600V / 750V ± (0.8% + 3)
DC voltage (V) 600mV / 6V / 60V / 600V / 1000V ± (0.5% + 3)
